General features and applications

SimCa performs cavity ABCD simulation considering TEM00 mode and gaussian optical systems. Three calculation modes are used: linear, ring cavities, single-pass propagation through an optical system. Astigmatism calculation after component tilt (tangential and sagittal beams are considered) is made. SimCa can also performs parametric analysis.

Outputs

• Gaussian beam tracing on one-way and return.
• Waist size.
• Waist location.
• Stability graph.
• Beam size visualization along the system.

I/O characteristics

• ASCII file containing system information.
• Color printing of results, data sheets and systems.

Operating system

Windows 7 / 8 / 10

SimCa interface

Application examples

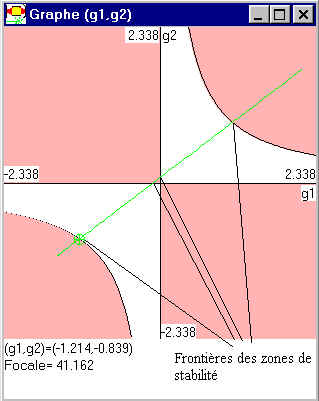

Cavity Stability
